Audio System Structure

Retro Rocket’s audio system has five main parts:

Drivers

The driver is the low-level hardware backend (e.g. MODLOAD "ac97").
It is specific to your sound card in your PC. Without a driver, no audio commands will work.

Currently supported sound cards:

Device	Description	Command
AC'97	Audio Codec ’97; legacy PCI audio standard	MODLOAD "ac97"
HDA	High Definition Audio; Azalia (successor to AC’97)	MODLOAD "hda"

Codecs

A codec is a small specialised program that knows how to decode audio files into the raw data format used by Retro Rocket. Codecs are provided as kernel modules, just like drivers, and must be loaded before you can use them.

Format	Description	Command
WAV	Uncompressed PCM; built-in and always available	(no module required)
MP3	MPEG-1 Layer III compressed audio	MODLOAD "mp3"
FLAC	Free Lossless Audio Codec	MODLOAD "flac"
OGG	Ogg Vorbis compressed audio	MODLOAD "ogg"
MOD	Amiga-style tracker modules (ProTracker, etc.)	MODLOAD "mod"

If you try to load any file type except WAV without first loading the corresponding codec module, you will receive an error as the file type will be unrecognised.

Streams

A stream is a playback channel created with STREAM CREATE.

Each stream has its own queue of sounds, volume, and state.
Multiple streams can run at once (for mixing music, effects, voices, etc.).
A stream handle is always a positive integer ID.

Sounds

A sound is decoded audio data loaded into memory with SOUND LOAD.

Sounds can be loaded from any supported codec (e.g. WAV, MP3, FLAC, OGG).
Sounds are stored in RAM as 44.1 kHz stereo, 16-bit PCM.
Sound handles are always non-zero integer IDs.
Sounds must be freed with SOUND UNLOAD when no longer needed.
You may generate basic square wave sounds without loading a sound file via SOUND TONE

Envelopes

An envelope is a shape applied to the loudness or tone of a sound over time. If you ever played games on a C64 or BBC Micro, you’ll remember how the same “beep” could sometimes be a pluck, a swelling chord, or a fading echo. That was done with envelopes: they control how a note evolves after it starts.

Retro Rocket uses the classic ADSR model (Attack, Decay, Sustain, Release) found on many vintage synthesisers:

Attack — how quickly the sound rises from silence to full strength when a note begins.
Decay — once the peak is reached, how fast the sound falls back down to a steady level.
Sustain — the level held as long as the note continues.
Release — how long the note takes to fade back to silence after it ends.

Flow of audio

File on disk (WAV/MP3/other) → Codec module decodes → SOUND LOAD → Sound handle

Sound handle + Stream → SOUND PLAY → Playback

Examples

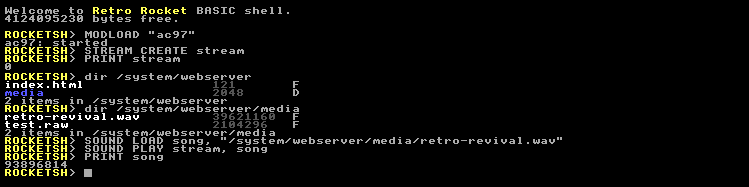

Play a WAV file

MODLOAD "ac97"                     ' load audio driver
STREAM CREATE music
SOUND LOAD song, "track.wav"
SOUND PLAY music, song

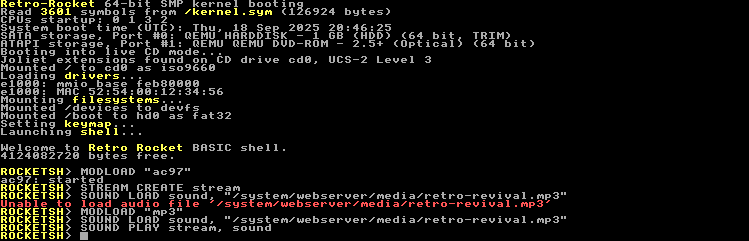

Play an MP3 file

MODLOAD "ac97"                     ' load audio driver
MODLOAD "mp3"                      ' load MP3 codec module
STREAM CREATE music
SOUND LOAD song, "track.mp3"
SOUND PLAY music, song

Play a FLAC file

MODLOAD "ac97"                     ' load audio driver
MODLOAD "flac"                     ' load FLAC codec module
STREAM CREATE music
SOUND LOAD song, "track.flac"
SOUND PLAY music, song

Playing tones/envelopes

MODLOAD "ac97"
STREAM CREATE s
' Simple square wave, no envelope applied
SOUND TONE s, 750, 100
' Simple square wave with organ-like sustain
ENVELOPE CREATE 0, 0, 255, 128, 5, 50, 200, 200, 0, 0, 0, 0, 0
' Soft sine wave pad, slow attack and release
ENVELOPE CREATE 1, 1, 200, 0, 500, 300, 180, 800, 0, 0, 0, 0, 0
' Plucked sawtooth, short attack/decay, no sustain
ENVELOPE CREATE 2, 2, 255, 0, 5, 100, 0, 200, 0, 0, 0, 0, 0
' Vibrato lead (square wave with pitch wobble)
ENVELOPE CREATE 3, 0, 220, 128, 10, 100, 180, 300, 30, 6, 0, 0, 0
' PWM effect (pulse-width modulation sweep)
ENVELOPE CREATE 4, 0, 240, 64, 20, 100, 200, 400, 0, 0, 0, 5, 120
SOUND TONE s, 750, 100, 0
SOUND TONE s, 750, 100, 1
SOUND TONE s, 750, 100, 2
SOUND TONE s, 750, 100, 3
SOUND TONE s, 750, 100, 4
